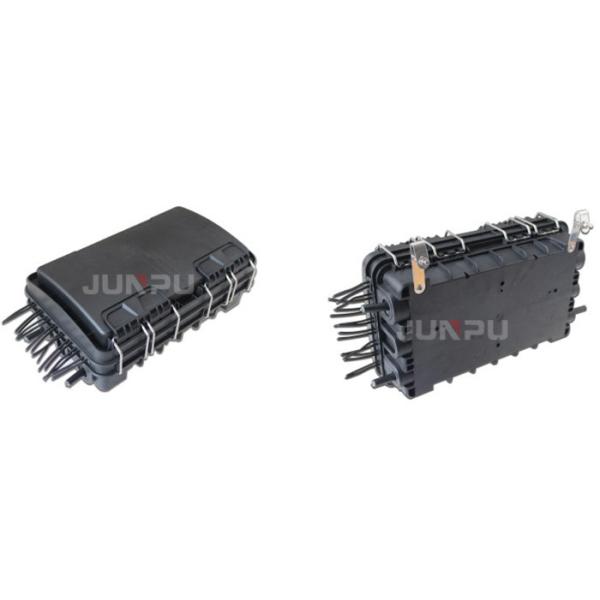

Junpu 24 Core Fiber Optic Splice Closure 2 In 16 Out Aerial Application
Decsripttion

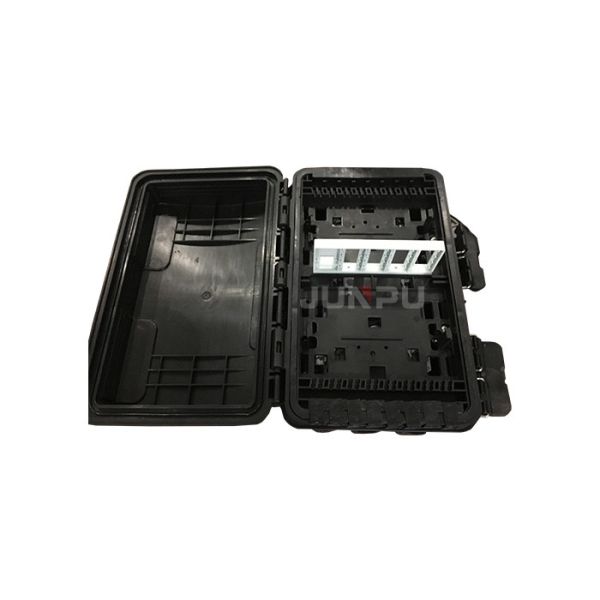

- This splice closure integrates distribution and splitting in one, can realize the direct fusion and branching of the optical cable, and is suitable for the wiring connection in the optical communication equipment. Through the adapter and jumper to bring in the signal to realize optical distribution function, it is also suitable for fiber optic cables and pigtail protective connection; the unique three-tier design of the box body can be used as a fiber splitter or splice box; the flip board can be flipped≥180°,it is more convenient to install the box or maintenance. If remove the board, it can bed as a splice closure to meet different choices.
Features:
- Optical fiber radius of curvature: ≥40mm
- Splice tray additional loss: ≤0.1dB
- Temperature range: -40°C ~ +60°C
- Anti side pressure: ≥2000N/10cm
- Impact resistance: ≥20N.m
- Protection class: IP65
Application:
- Watertight - Underground - Aerial
| Paremeter | Specification |
| Max Adapter Number | 18pcs - 2pcs@mini steel tube splitter; 9pcs - 1pcs@ inside LGX splitter |
| Cable Diameter | Φ7-φ18 |
| Max Splice Tray | 1pcs |
| Max Fusion Splice | 24 Core |
| Cable Port | 2pcs 8-20mm round ports,4pcs 5-16mm round cable, 16pcs 3-7mm drop cable ports |
| Dimension | 285*175*110mm |
Details:
Workshop Photo:
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers etc.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your request.
Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.
Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.
Junpu Fiber Optic Distribution Box Series
We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
